型號:MT-S905

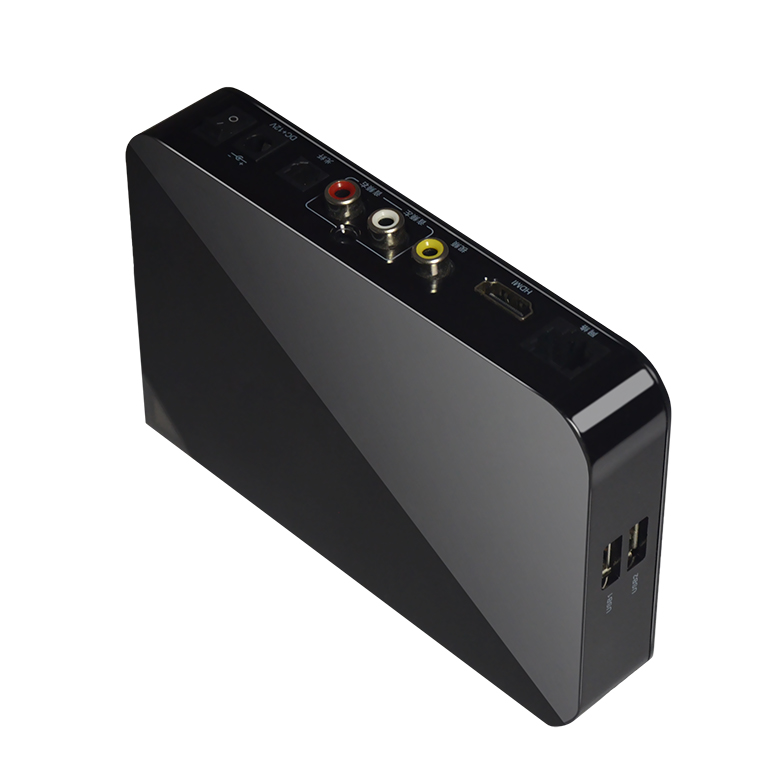

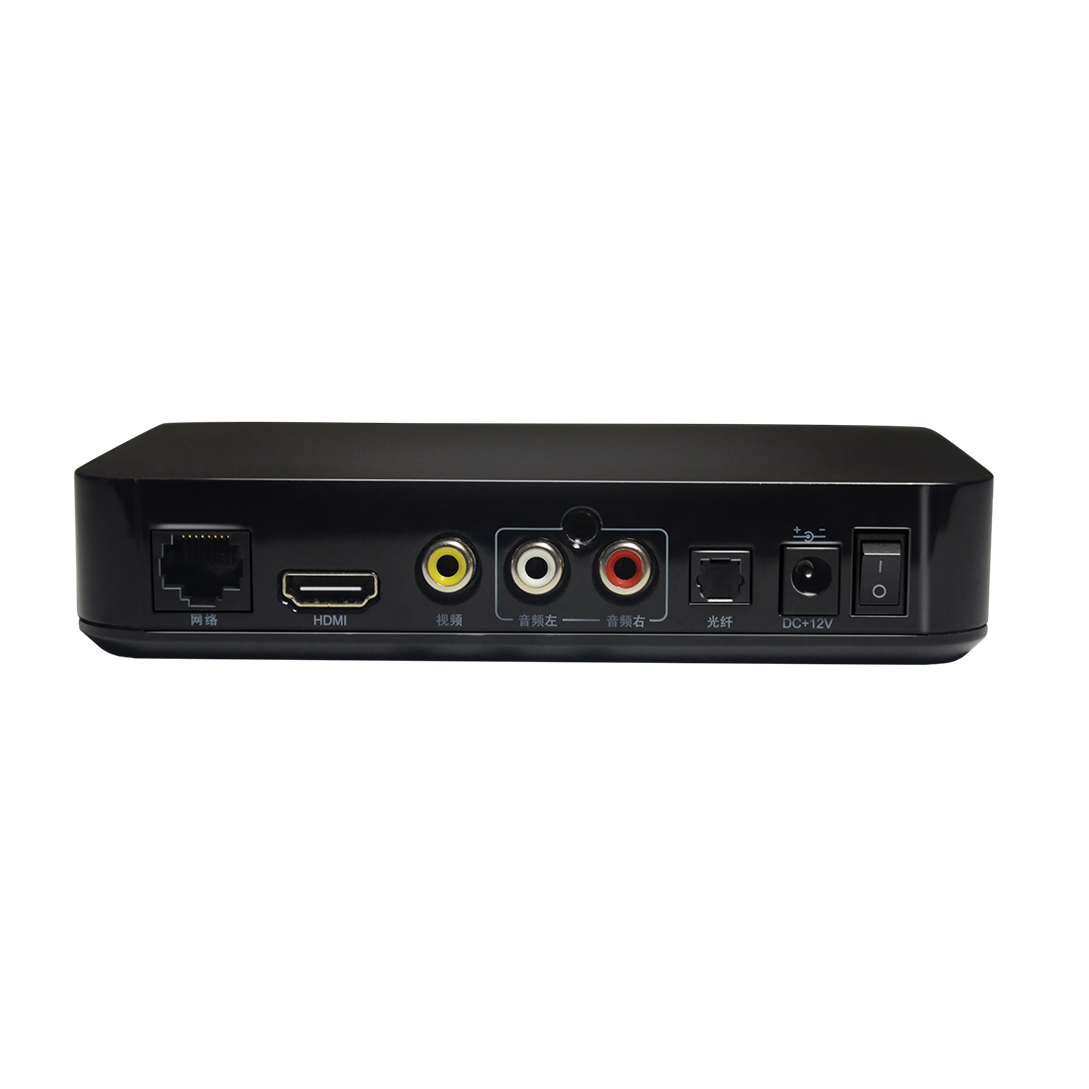

品名:MT-S905 4K 高清數字機頂盒


在線詢價

MT-s905 is a quad core HEVC 4K@60fps Android OTT/IPTV set-top box.It is designed for ISPs,OTT
Operators and content aggregators that provide services based on IPTV,OTT and VoD.
ARM Cortex-A53 quad Core CPU,android 5.1
4K@30fps HEVC Main-10 Decoding
DRM:Widevine,Playready,Verimatrix,Marlin
Support PPPoE、DHCP、LAN Multiple access methods.
Support IPV4/IPV6
Support IEEE 802.11b/g/n
Support Bluetooth 4.0
Support 10/100Mbps Ethernet RJ45 port
Support  2*USB port
Support 1* CVBS
Support 1*SPDIF
Support  one  Micro SD card interface


Product specification
Processor CPU ARM Cortex-A53 quad Core CPU
GPU Penta-core ARM Mali-450 GPU up to 750MHz+(DVFS)
Dual Geometry processors and triple pixel processors
System UI ANDROID
OS Android 5.1
Memory DRAM 2GB,DDR3
Flash 8GB,eMMC
Interface Power 12V,1A
USB USB2.0 x2,support mouse&keyboard
Ethernet RJ45
HDMI HDMI2.0,video output
SPDIF Fiber audio output
SD Card TF Card
MINI AV 1 to 3 (3.5mm)
Network Wi-Fi Wi-Fi 2.4GHz 300M IEEE 802.11b/g/n
bluetooth Bluetooth 4.0
IR Internal IR receiver
Ethernet RJ45 Interface 10M/100M IEEE 802.3u
video Format AVI,FLV,ISO,M2TS,MKV,MOV,MP4,MPG,MPEG,RM,RMVB,TS,VOB,WMV,DAT,3GP,DIVX,F4V,ASF,M2V etc.
Decoder H.265 4K*2K@60fps,H.264 4K*2K@30fps,AVS+,MPEG1/2/4 ASP,WMV/VC-1,Realmedia8/9/10
Max resolution 1080P
audio Format MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, MP1/2 etc.
Decoder MPEG1/2/4, MP3, AAC/AAC+, WMA/WMA-pro,  FLAC, OGG etc.
Support dobby(optional)&DTS(optional)
Photo Format GIF,JPG,JPEG,BMP,PNG etc.
Power
Consumption
Consumption 8W Max
Environment Operation
temperature
0~40℃
Humidity 5~95(%RH)
Accessory
list
Accessory 4K IPTV BOX
  Remote control
  battery
  Power adapter
  HDMI cable
  User manual
  Size 110*110*21.5mm
  Material Plastic
  Color Black,White,
Accessory
list
Accessory 4K IPTV BOX
Remote control
battery
Power adapter
HDMI cable
MINI AV cable
User manual
