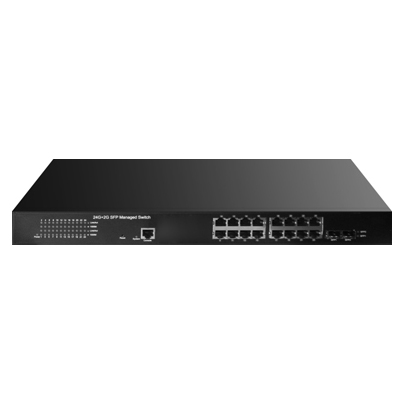

型號:MT-GS2218F

品名:16口全千兆網管型交換機


在線詢價
端口數 16 10/100/1000M RJ-45 MDI/MDI-X port(Including 8 POE port),
2 1000MSFP
1 Console RJ45
Flash 32MB
SDRAM 128MB
包轉發率 26.8Mpps
背板帶寬 36Gbps
交換模式 Store-and-Forward
MAC地址表 8K
queue buffer 4MB
機殼尺寸 440*220*44 (mm)
電源輸入 AC100-240V
LED power 、system、Link/Act、100M、1000M
使用環境 工作溫度: 0℃~50℃;工作濕度10%~90%不凝結
存儲溫度: -40℃~70℃;存儲濕度5%~90%不凝結

 VLAN
Port base VLAN
ACCESS VLAN
TRUNK VLAN
HYBRID VLAN
802.1Q tagged VLAN
Max. 4094 VLAN
IGMP Snooping IGMP v1/v2 Snooping
Support 256 groups

 MAC address administration
MAC address display/inquire
Static MAC settings
Dynamic MAC address administration
MAC address filtering
Loop detection Support loop detection
storm control Broadcast/Multicast/Unknown Unicast Storm Control
Link Aggregation maximum 8 port per group, support 16 group
LACP dynamic or static aggregation
Access control Based on MAC source, destination MAC, MAC source and destination MAC, MAC protocol, source IP access control.
Based on the TCP, IP, UDP, IGMP source IP, destination IP, source IP and destination IP access control
Security feature VLAN port isolation
Port +MAC+IP binding
 Port Mirroring - One-to-one
- Many-to-one
-By mirroring port transmission, receiving and sending and receiving data
network management Telnet
CLI
WEB (IP:192.168.1.200 ,username/password: admin/admin)
Port speed limit Egress and ingress speed limit
DHCPSNOOPING Prevent illegal DHCP server
Loop detection Detection of Ethernet loop
ARP attack prevention To prevent the ARP request deception
To prevent the ARP reply to cheat
Jumbo Frames 10K

 SNMP
SNMP v2c;conform to RFC1902, RFC1903, RFC1904, RFC1905,
RFC1906, RFC1907
The MIB II;conform to RFC1213
Ethernet MIB;conform to RFC1643
The bridge MIB;conform to RFC1493
RMON

Support group 1, 2, 3, 9
Equipment management Console
Telnet
The CLI interface
WEB UI
Support the ping
Check the CPU and memory utilization
one key to collect fault
